NEXTGEN ULTRA COMPACT MARINE GENERATORS NEW FOR 2006!

NEXT Generations UCM1-3.5 is one of the lightest,  most compact and efficient gen-sets in its class

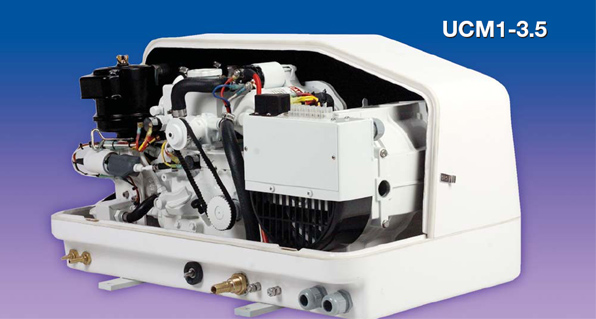

UCM1-3.5

Mid speed operation provides low sound and vibration levels.
Lower operating speeds to reduce sound levels and increase life expectancy
Fully fresh water marinized heavy duty Kubota diesel engine for trouble free operation
Average fuel consumption to just 2/10 GPH.
Ultra compact size and light-weight construction

ULTRA COMPACT MARINE 3.5 KW GENERATOR IGNITION PROTECTION CERTIFIED Models can be installed in Gasoline or Diesel Vessels

FEATURES

Cupro - Nickel Heat Exchanger

Unit mounted self priming impeller pump

Stainless steel water cooled exhaust mixer

Air Cleaner/lntake silencer

Oil pressure & water temperature safety shutdown

Extra wide timing drive system

12 volt electric fuel pump

Extra resilient four point isolation mounts

"Easy Drain" oil change system removable/cleanable

oil filter

Front side service

Marine grade tinned wire

Fuel filter

Main breaker

Beltguard

Remote start panel with hour meter and harness



Find Nextgen Marine Generators Pricing

Marine Generators by Nextgen with Kubota Engines

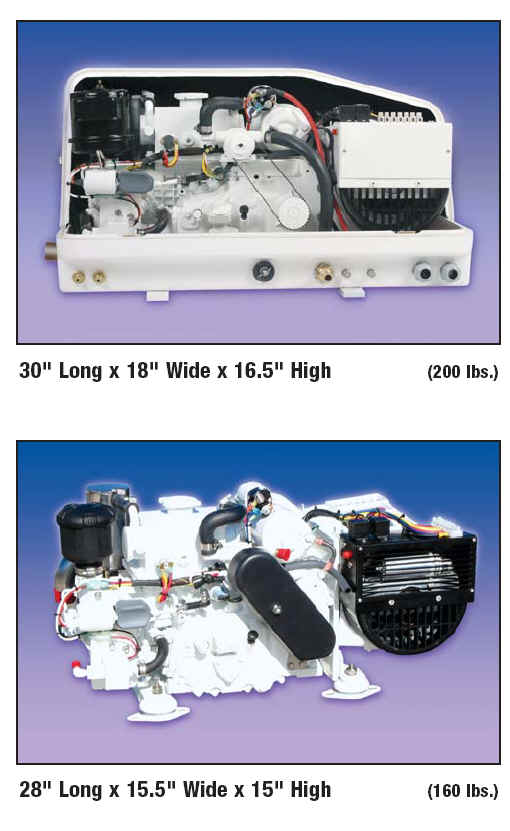

UCM1-3.5 with Soundproof Enclosure

OPTIONS

Ignition Protection Certification

Sound Enclosures

20' or 30' Wire Harness

TYPE - Horizontal, Water Cooled

4 Cycle diesel engine

# Of Cylinders - 1

Bore x Stroke (In) - 2.95 x 2.76

Displacement (Cu. In.) - 18.86

SAE net intermittent (HP/rpm) - 7/2800

Combustion System - Spherical

Compression Ratio - 23:1

Fuel lnjection Pump Type - Bosch "mini" type

Nozzle Type - Bosch "throttle" type

Cooling System - Fresh Water Heat

Exchanger

Lubricating System - Forced by trochoid

pump

Fuel - ASTM #2 diesel or

equivalent

Lubricating Oil - Quality better than

API service CE class

Fresh Water capacity - 1.2 qt.

Lubricating Oil Capacity - 1.O U.S. Quarts

Starting System - 12V Battery

Charging System - None

Fuel Line Diameter - 5/16"

Return Line Diameter - 1/4"

Raw Water Diameter - 5/8"

Exhaust Diameter - 1 1/2"

Output Voltage - 120/240

Output AMPS - 30/15

Output Watts - 3500



SPECIFICATIONS

TYPE - Horizontal, Water Cooled

4 Cycle diesel engine

# Of Cylinders - 1

Bore x Stroke (In) - 2.95 x 2.76

Displacement (Cu. In.) - 18.86

SAE net intermittent (HP/rpm) - 7/2800

Combustion System - Spherical

Compression Ratio - 23:1

Fuel lnjection Pump Type - Bosch "mini" type

Nozzle Type - Bosch "throttle" type

Cooling System - Fresh Water Heat

Exchanger

Lubricating System - Forced by trochoid

pump

Fuel - ASTM #2 diesel or

equivalent

Lubricating Oil - Quality better than

API service CE class

Fresh Water capacity - 1.2 qt.

Lubricating Oil Capacity - 1.O U.S. Quarts

Starting System - 12V Battery

Charging System - None

Fuel Line Diameter - 5/16"

Return Line Diameter - 1/4"

Raw Water Diameter - 5/8"

Exhaust Diameter - 1 1/2"

Output Voltage - 120/240

Output AMPS - 30/15

Output Watts - 3500

Specifications Subject to Change Without Notice.

Attention! Bulk Inverter/charges such as those by Trace, Heart & others have special power requirements.

Please advise before ordering.
